Double Side Spindle Shaper
Specification:
Working Table Size:1800×960 mm
Max. Working Thickness:120 mm
Spindle Dia.:Ø35 mm
Spindle Speed:10000 rpm
Total Power:4.5 kw x2
Overall Size:1800*1060*1000 mm
Brush Sander BS 1V
Specification:
Diameter of Brush Roll:Ø 300 mm
Length of Brush Roll:200 mm
Rotating Speed:VF Control
Motor Power :.75 KW
CNC Router Machine WTS Compact
Specification:
Design:T-Slot Working Table
Working Table:6 mm+8 mm Thickness Steel Structure
Control System:DSP Richauto with Extra Long Cable
Inverter:5.5 Kw Inverter
Spindle:4.5 KW air cooled Spindle
Spindle Speed:18000 rpm
Driver:Yako Big Driver
X, Y Axis:25mm Linear Guidway And Block; 1.5m Helical Rack
X,Y Driving System:Yako Big Stepper Driver & Driver
Z Axis Driving System :Yako Servo Motor and drive
Z Axis:Ball Screw, Connection As Coupling Type
Traveling Size:2500 * 1300 * 200毫米
Table Height:700 mm
Electric Components:– Schneider
Sensor:Original Omron Brand
With Manual Lubrication Pump
Dust Collector:2.2 Kw Dust Collector
Voltage: AC 220v, 01 PH, 50hz
Spindle Moulder ECO SM 3215
Specification:
Arbor Dia:⌀ 30 mm
Spindle Stroke :150 mm
Spindle Speed:8000/ 10000 rpm
Working Table Size:1130 x 670 mm
Minimum Profiling Radius:45 mm
Max Cutter Diameter:220 mm
Motor power:3 kw
Voltage:220 V
Auto Hole Drilling and Boring Machine WTS Drill Elite 303
Specification:
Head:1 horizontal & and 2 vertical Heads
Max. drilling diameter:Dia-35mm ( single boring) Dia13mm ( multi boring)
Max. drilling depth:50mm
Total drill spindle quantity:21×1+22x2pcs = 65 pcs
Max. center distance between holes:1800x672mm
Min. center distance between holes:130x32mm
Spindle rotation speed:2840RPM
Center distance of drill spindle:32mm
Horizontal rows motor power:1.5KW
Air pressure:0.5-0.6Mpa
Dimension: 2800x2500x1620mm
Band Saw MJ345A
Specification:
轮:Ø500mm
Max. Working Thickness:120mm
Saw blade Speed:18.8m/s
Saw blade Length:3550mm
Saw blade Width:1.25~4cm
Table Size:70x58cm
Power:1.5kw
Dust Exit:Ø100×1
Overall Dimensions:1120*750*1830 mm
Weight:280Kg
Spindle Moulder MX5117B
Specification:
Working Table Size:1130×670毫米
Max. Working Thickness:120 mm
Spindle Dia.:Ø35 mm
Spindle Speed:8000/10000 rpm
Power:5.5 kw
Dust Exit：Ø100×1
Overall Size:1170*700*870 mm
High Speed Router MX5068
Specification:
Working Table Size:800x600mm
Working Table Lift Stroke:180mm
Max. Workpiece Thickness:150mm
Max. Spindle Stroke:65mm
Distance Between Spindle & Stand:730mm
Tool Holder Dia.:Ø12.7mm
Spindle Speed:18000rpm
Power:3kw
Overall Size:1450*800*1700mm
Cut Off Saw MJ274
Specification:
Max. Blade Dia.:Ø405 mm
Spindle dia.:30 mm
Max. Cutting:300 mm(W) x 100mm(T)
Table Size:660×700 mm
Working Table Length:1250 mm
Speed:2900 rpm
Power:5.5 kw
Dust Exit:Ø120
Overall Dimension:3100x800x1300 mm

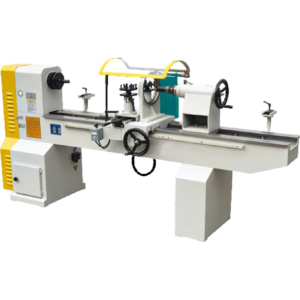

木Copying Lathe WCL 19503
Specification:
Max. Working Dia.:Ø380mm
Max. Working Length:1950mm
Spindle Speed:750/1200/1750/2800 rpm
Total Power:2.2kw
Overall Size:3400*960*1300mm
CNC Router Machine WTS Prime
Specification:
Working Table:Manual Clamping, Aluminum Bar With White PVC Strip,
Control System:DSP System (Weihong)
Inverter:5.5 KW for 220 V
Spindle:HQD Brand Air Cooling Spindle 4.5 KW
Spindle Speed :18000 rpm
X, Y Axis:25 MM Taiwan Brand Liner Guidway and Block; 1.5 M Hilical Rack
X,Y Axis Driving System:Servo Motor
Z Axis Driving:Servo Motor
Traveling Size:2500*1300*200 MM
Electronic Components:AC Contactor, Circuit Braker and Switch Power Supply From Schneider Brand
Sensor:Original Omron Brand with automatic Lubrication Pump
Dust Collector:2.2 Kw for 220V Dust Collector
CNC Router Machine WTS Prime +
Specification:
Working Table:Manual Clamping, Aluminum Bar With White PVC Strip,
Control System:DSP System (Weihong)
Inverter:Delta 7.5 KW
Spindle:HQD (Italy) Brand Air Cooling Spindle 6 KW
Spindle Speed :18000 rpm
X, Y Axis:25 MM Taiwan PMI Brand Liner Guidway and Block; 1.5 M Hilical Rack
X,Y Axis Driving System:Servo Motor
Z Axis Driving:Servo Motor 3
Traveling Size:2500*1300*200 MM
Table Height:750 MM
Electronic Components:AC Contactor, Circuit Braker and Switch Power Supply From Schneider Brand
Sensor:Original Omron Brand with automatic Lubrication Pump
Dust Collector:2.2 Kw Dust Collector
