CNC Router Machine WTS Thunder
Specification:
Design:T-Slot Working Table
Working Table:6 mm+8 mm Thickness Steel Structure
Control System:DSP Richauto A11E
Inverter:5.5 Kw Foling brand Inverter
Spindle:4.5 KW (HQD) air cooled Spindle
Spindle Speed:18000 rpm
X, Y Axis:25mm Linear Hiwin brand Guidway And Block; 1.5m Helical Rack
Z Axis:Taiwan Made Ball Screw
X,Y,Z Axis motor and Driving System:Yako Servo Motor and Driver
Traveling Size:2500*1300*200 mm
Sensor:Original Omron Brand
Manual Lubrication:Manual Lubrication Pump
Dust Collector:2.2 Kw Dust Collector
Voltage:AC 220v, 01 PH, 50hz
Auto Straight Edge Bander EB 500
Specification:
Work piece length:≥150 mm
Feeding speed:16/22/24 m/min
Work piece width:≥60 mm
Suction inlet:Ø125 mm x 2
Min. work piece size:150×60 mm
Air pressure:0.6 Mpa
Work piece thickness:10-60 mm
Motor power:8.3 KW
Tape thickness:0.4-3 mm
Dimension:3960 x 1000 x 1700 mm
Auto Straight Edge Bander EB 320
Specification:
Min. Panel width:60 mm
Min. Panel length:150 mm
Panel thickness:10-60 mm
Edge tape thickness:0.4-3 mm
Feeding speed:15 m/min
Working pressure:0.6 mpa
Total motor power:6.7 kw
Dimension:3120*670*1270 mm
Weight:510 kgs
CNC Router Machine WTS Elite (Double Head)
Specification:
Design:The Alart Lamp Will Be The Side Of Gantry Side. Without Spindle Covers
Working Table:Manual Clammping, Aluminium Bar With White Pvc Strip Thickness 12mm, Table Height As 750mm
Control System:Nk105
Inverter:5.5kw 2pcs
Spindle:4.5 kw for 220v and 6 kw for 380v Air Cooling Spindle 2pcs
X, Y Axis: 25mm Taiwan Linear Guidway And Block; 1.5m Hilical Rack
Z Axis:Ball Screw, Connection As Coupling Type
X,Y Axis Driving System:Yako容易伺服电机和驱动程序
Z Axis Driving:Yako容易伺服电机和驱动程序With coupling Breaking system,
Traveling Size:2500*1500*200mm
Electric Components:Ac Contactor, Circuit Braker And Switch Power Supply From Schneider Brand
Sensor:Original Omron Brand
Lubrication System:automatic Lubrication Pump
Dust Collector:2.2 Kw Dust Collector
Voltage:Ac 220/ 380v 50hz
CNC Router Machine WTS Classic + (Double Head)
Specification:
Design:T-Slot Working Table
Working Table:6 mm+8 mm Thickness Steel Structure
Control System:DSP Richauto A11E Extra Long Cable
Inverter:5.5x 2 Kw Inverter
Spindle:4.5x 2 KW air cooled Spindle (HQD)
Spindle Speed:18000 rpm
X, Y Axis:20mm Linear Taiwan Guidway And Block; 1.5m Helical Rack
X,Y and Z Axis Driving System:Yako Servo Motor and Driver
Z Axis Driving System :Ball Screw, Connection As Coupling Type
Traveling Size:2500*1700*200mm
Table Height:700 mm
Electric Components:Schneider
Sensor:Original Omron Brand with Manual Lubrication Pump
Dust Collector:2.2 Kw Dust Collector
Voltage:AC 220v/380, 01 PH, 50hz
CNC Router Machine WTS Compact + (Double Head)
Specification:
Design:T-Slot Working Table
Working Table:6 mm+8 mm Thickness Steel Structure
Control System:DSP Richauto A11E Extra Long Cable
Inverter:5.5x 2 Kw Folinn brand Inverter
Spindle:4.5x 2 KW air cooled Spindle (HQD)
Spindle Speed:18000 rpm
X, Y Axis:20mm Linear Taiwan Guidway And Block; 1.5m Helical Rack
X and Y Axis Driving System:Yako Stepper Motor
Z Axis Driving System :Yako Servo Motor; Ball Screw-Connection as Coupling Type
Traveling Size:2500*1700*200 mm
Table Height:700 mm
Electric Components:Schneider
Sensor:Original Omron Brand with Manual Lubrication Pump
Dust Collector:2.2 Kw Dust Collector
Voltage:AC 220v, 01 PH, 50hz
CNC Router Machine Racer
Specification:
Design:T-Slot Working Table
Working Table:T-Slot Aluminum Table + White Pvc
Control System:DSP Richauto A11E (Extra Long Cable)
Inverter:5.5 Kw Inverter
Spindle:4.5 KW (HQD) air cooled Spindle
Spindle Speed:18000 rpm
X, Y Axis:20mm Linear Guidway And Block ; 1.5m Helical Rack and Pinion
Z Axis:Ball Screw, Connection As Coupling Type
X,Y,Z Axis Motor:Stepper Motor
X,Y,Z Axis Driving System:Stepper Drive
Traveling Size:2500*1300*200 mm
Sensor:Omron, Japan
Manual Lubrication:Manual
Dust Collector:2.2 Kw Dust Collector
Voltage:AC 220v, 01 PH, 50hz

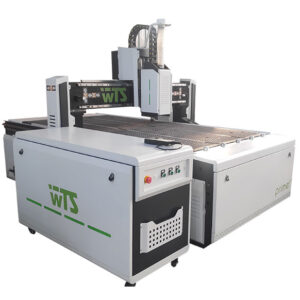

CNC Router Machine WTS Prime vt
Specification:
Working Table:Vacuum Table with Pump) Air-recycling type,
Control System:DSP System (Weihong)
Inverter:Delta 7.5 KW
Spindle:HQD (Italy) Brand Air Cooling Spindle 6 KW
Spindle Speed :18000 rpm
X, Y Axis:25 MM Taiwan Brand Liner Guidway and Block; 1.5 M Hilical Rack
Z Axis:Ball Screw With Coupling Structure.
X,Y Axis Driving System:Delta Ac Servo Motor And Driver
Z Axis Driving:Delta Ac Servo Motor And Driver.
Traveling Size:2500*1300*200 MM
Table Height:750 MM
Electronic Components:AC Contactor, Circuit Braker and Switch Power Supply From Schneider Brand
Sensor:Original Omron Brand with automatic Lubrication Pump
Dust Collector:2.2 Kw Dust Collector
CNC Router Machine WTS Prime +
Specification:
Working Table:Manual Clamping, Aluminum Bar With White PVC Strip,
Control System:DSP System (Weihong)
Inverter:Delta 7.5 KW
Spindle:HQD (Italy) Brand Air Cooling Spindle 6 KW
Spindle Speed :18000 rpm
X, Y Axis:25 MM Taiwan PMI Brand Liner Guidway and Block; 1.5 M Hilical Rack
X,Y Axis Driving System:Servo Motor
Z Axis Driving:Servo Motor 3
Traveling Size:2500*1300*200 MM
Table Height:750 MM
Electronic Components:AC Contactor, Circuit Braker and Switch Power Supply From Schneider Brand
Sensor:Original Omron Brand with automatic Lubrication Pump
Dust Collector:2.2 Kw Dust Collector
CNC Router Machine WTS Prime
Specification:
Working Table:Manual Clamping, Aluminum Bar With White PVC Strip,
Control System:DSP System (Weihong)
Inverter:5.5 KW for 220 V
Spindle:HQD Brand Air Cooling Spindle 4.5 KW
Spindle Speed :18000 rpm
X, Y Axis:25 MM Taiwan Brand Liner Guidway and Block; 1.5 M Hilical Rack
X,Y Axis Driving System:Servo Motor
Z Axis Driving:Servo Motor
Traveling Size:2500*1300*200 MM
Electronic Components:AC Contactor, Circuit Braker and Switch Power Supply From Schneider Brand
Sensor:Original Omron Brand with automatic Lubrication Pump
Dust Collector:2.2 Kw for 220V Dust Collector
High Speed Router MX5068
Specification:
Working Table Size:800x600mm
Working Table Lift Stroke:180mm
Max. Workpiece Thickness:150mm
Max. Spindle Stroke:65mm
Distance Between Spindle & Stand:730mm
Tool Holder Dia.:Ø12.7mm
Spindle Speed:18000rpm
Power:3kw
Overall Size:1450*800*1700mm
Spindle Moulder MX5117B
Specification:
Working Table Size:1130×670毫米
Max. Working Thickness:120 mm
Spindle Dia.:Ø35 mm
Spindle Speed:8000/10000 rpm
Power:5.5 kw
Dust Exit：Ø100×1
Overall Size:1170*700*870 mm
