Sliding Panel Saw PS 1600
Specification:
Dimension of Sliding Table:1600*1250 mm
Cross Cut Capacity:1600 mm
Max. Cutting Width:1250 mm
Saw Blade Diameter:300 mm
Max. Cutting Height At 90°:80 mm
Max. Cutting Height At 45°:55 mm
Main Saw Spindle Speed:4000/6000 rpm
Main Spindle Diameter:30 mm
Tilting Saw Blade:0-45°
Main Motor:5.5 HP
得分Saw Blade Diameter:120 mm
得分Saw Blade Speed:8000 rpm
得分Spindle Diameter:20 mm
得分Motor:1 HP
Net Weight:500 kgs
Dimensions:1650*2500*880 mm
Jai Combination Machine J 1015
Specification:
Max. Planing Width:381 mm/15”
Max. Planing Length:1295 mm/51”
Motor Power:3惠普
Rotation Speed (Rpm):5600
Max. Depth of Cut:3 mm
Line Voltage:220 V
Weight:380 KG
Brand:Jai
Made In By:India
Standard:European
Jai Thickness Planer J 412
Specification:
Max planing width-455 mm / 18″
Thicknessing capacity –200 mm/ 8″
Length of thickness table-660 mm/ 26″
Min. length of work piece of thicknessing –254 /10″
Feeding speed (feed per minute)-24
Cuttter block diameter –95 / 3.75″
Cutter block speed (RPM) –4000
Standard cutter block-code No-.2B
Power required HP/RPM –5/1440
Approx. wt. of machine –375 kg
Jai Combi Planer J 303L
Specification:
Max. Planing Width:330 mm/13”
Max. Planing Length:1524 mm/60”
Motor Power:3惠普
Rotation Speed (Rpm):5600
Max. Depth of Cut:3 mm
Line Voltage:220 V
Weight:350 Kg
Brand:Jai
Made In By:India
Surface Planer MB 503
Specification:
Max. Planning Width:400mm/16″
Max. Planning Depth:4mm
Arbor Rotation:5600转
Fence Size:900x95mm
Working Table Length:80″
Motor Power:4 Hp
Shaft Diameter of Cutting Knife:88 mm
N/G Weight:310 kgs
Power:220V,50Hz
Double Side Thickness Planer TP 400 DS
Specification:
Max. Working Width:400 mm/16″
Work Piece Thickness Arrange:5-130 mm
Min. planning length:260mm
Feeding Speed:7 or 9 m/min
上刀规划深度:4 mm
Down knife planning depth:2 mm
Spindle Speed:7750rpm rpm
Main Motor Power:7.5HP
Dimension:875x800x1200 mm
N/G Weight:400/425Kgs
Thickness Planer TP 600 B
Specification:
Max. Working Width:630 mm/24″
Work Piece Thickness Arrange:8-275mm
Feeding Speed:9m/Min
Min. Working Length:220 mm
Max. Planing Depth:5 mm
Spindle Speed:5000 rpm
Main Motor Power:7.5 HP
Voltage:380 v
Dimension:1100*835*1330mm
N/G Weight:580 kgs

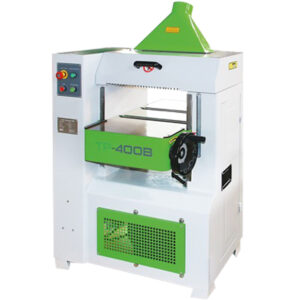

Thickness Planer TP 400 B
Specification:
Max. Working Width:400 mm/16″
Work Piece Thickness Arrange:8-275mm
Min. Working Length:220 mm
Max. Planing Depth:0.5- 5 mm
Spindle Speed:5000 rpm
Knives Mounted On Shaft:04pcs
Main Motor Power:5.5 HP
Voltage:220v/380v, 50hz
Dimension:870*835*1280 mm
N/G Weight:495 kgs
Circular Saw CS 350 N
Specification:
MAX. CUTTING THICKNESS:100MM
SPINDLE SPEED:3400RPM
MAX. SAW BLADE DIAMETER:Ø350MM
SPINDLE DIAMETER:Ø30MM
TILTING ANGLE OF SAW BLADE:45º
MOTOR POWER:4KW
DIMENSION:1680*1390*900MM
WEIGHT:440KGS
Surface Planer SP 400DS
Specification:
MAX. PLANING WIDTH:400MM
MAX. REMOVAL DEPTH:4MM
ARBOR ROTATION SPEED:5600 RPM
WORKING BENCH LENGTH:2000 MM
MOTOR POWER :4 KW
VOLTAGE:380 V 50 HZ
DIMENSION:2000 x 850 x 1010 MM
N/G WEIGHT:370/415 KGS
POWER:220 V, 03 Phase, 50 Hz
Thickness Planers TP 104
Specification:
Max. Working Width:400mm/16″
Work Piece Thickness Arrange:5-120mm
Max. Planing Depth:04 mm
Spindle Speed:4500rpm
Main Motor Power:03 HP
Voltage:220v, 50hzN/G
Weight:147kgs
Combination Machine WTS 400
Specification:
Table Size:60″x16″
Max. Planing Depth:3mm
Entrance Of Thicknesser:6-200mm
Min.Length Of Planing:150mm
Auto Feeding Speed:8.5m/Min
Spindle Speed:5270rpm
Max. Sawing Thickness:80mm
Motor Power:2.2kw/3 HP
Dimension:1600x1660x880mm
Weight:345kgs
Power :220v, Single Phase, 50 Hz
