Wood Mizer Resaw HR 115
Specification:
Power: 11 kW
Min. cant width:50 mm
Max. cant width:400 mm
Min. cant height:10 mm
Min. material length:700 mm
Max. material length:Not limited.
(for longer material must be added additional support tables.)
Min. cutting height:6 mm
180 mm (with additional back roller)

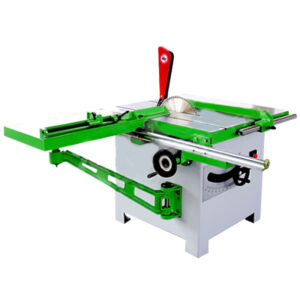

Sliding Circular Saw STS 16 GC
Specification:
Dimension of Sliding Table:1600*370 mm
主要锯片直径:300 mm
Max. Cutting Height At 90°:80 mm
Max. Cutting Height At 45°:55 mm
Speed of Main Saw :4000/5000rpm
Main motor :3.0 KW (4hp)
Saw blade tilting capacity:0-45 degree
Line voltage:220 V/380 V
Jai Circular Saw J 634
Specification:
Max. Circular saw diameter:355 / 14″
Max. depth of cut:114 / 4½”
Arbour tilt:45° degree
Work table size:915 x 785 / 36″ x 31″
Sliding table size:710 x 400 / 28″ x 15¾”
Sliding table movement:1000 / 39″
Size of dust collection port:100 / 4″ Dia
Circular saw speed (RPM):4000
Power required – HP / RPM:5 / 1440
Approx. Weight of machine:425 kg
Circular Saw CS 350 N
Specification:
MAX. CUTTING THICKNESS:100MM
SPINDLE SPEED:3400RPM
MAX. SAW BLADE DIAMETER:Ø350MM
SPINDLE DIAMETER:Ø30MM
TILTING ANGLE OF SAW BLADE:45º
MOTOR POWER:4KW
DIMENSION:1680*1390*900MM
WEIGHT:440KGS
