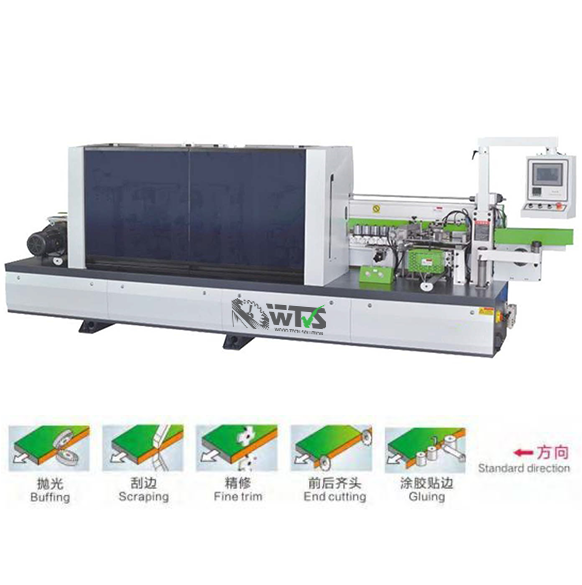

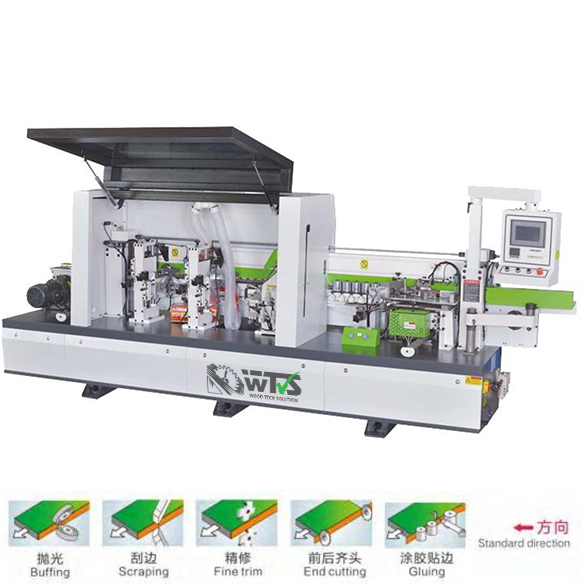

Auto Straight Edge Bander MF50 B

Equipment & Features »

• The thick steel sheet is sheared by plasma device.
• All the metal plate is done by the High-class laser cutting machine; which can ensure the precision and the final appearance.
• The main body has been done the quench treatment, to avoid the deformation during the processing or painting.
• The main parts have been done the vibration aging, to remove the internal stress, so can ensure the stability and the precision.
• All the body frame and metal plates have been done as powder coating process, to achieve the perfect appearance.
• The main parts have been done the processing on the high precision gantry milling center, to ensure the high levelness.
• All the main parts have been done the inspection on the coordinate measuring machine.
• Press Beam structure: Adopts high-class aluminum profile type press beam; The elevating is controlled on the touch screen via pushing button; with mechanical numerical gauge.
• Pre-heating unit：This unit can do the pre-heating on the edge of the board, to ensure the sealing performance. Especially for the area with high moisture and low temperature.
• Tape pressing structure：This machine adopts the six rolls tape pressing structure, the drive roll diameter will be Ø100mm, comes with 5 pcs driven rolls, to achieve the stable attaching of board and tape.
• Gluing structure:This edge bander adopts updraft type gluing structure, it is suitable to process the EVA type hot melt glue.
• End Cutting device (snapping device)：Adopts single linear guide way structure with 45º Two pcs high speed motor with two cutting saw blades.
• Fine trimming device：Two pcs high-speed air-cooling spindle
  Spindle angle is adjustable;Trimming amount is adjusted via pneumatic device, which will clamp the tape with the same thickness;Come with the individual exhaust inlet
• Scrapping device：Come with air jet, which can blow the small chips;
  Scrapping is adjustable through pneumatic device, with linear guide way structure.
• Buffing unit：Adopts the cotton wheels to polishing on the sealed edge; Which can improve the scrapping appearance, also can clean some glue thread on surface.
• Electric components: Input voltage 380V. Individual inverter control, come with motor braking with phase sequence protection device.
• Control system: All the functions is controlled via PLC control system; HMI is 7inch touch screen; Come with individual temperature controller, to ensure the stability of the system.

With Machine (Free) »

• Installation & Training
• 1 year servicing
• Tool Box
