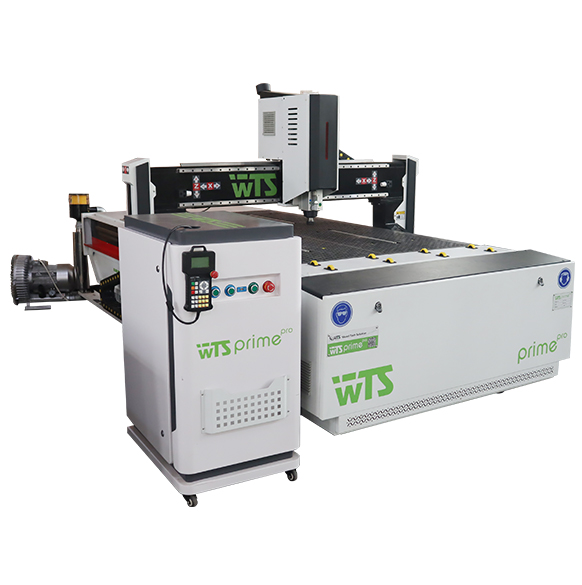

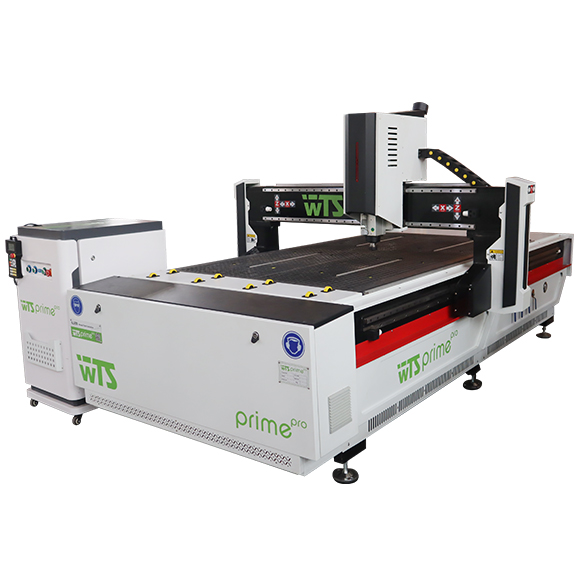

Working Table:Vacuum Table with Pump) Air-recycling type,
Control System:DSP System G3 (Weihong)
Inverter:Delta 7.5 KW
Spindle:HQD (Italy) Brand Air Cooling Spindle 6 KW
Spindle Speed :18000 rpm
X, Y Axis:25 MM Taiwan Brand Liner Guidway and Block; 1.5 M Hilical Rack
Z Axis:Ball Screw With Coupling Structure.
X,Y Axis Driving System:Delta Ac Servo Motor And Driver
Z Axis Driving:Delta Ac Servo Motor And Driver.
Traveling Size:2500*1300*200 MM
表高度:700 MM
Electronic Components:AC Contactor, Circuit Braker and Switch Power Supply From Schneider Brand
Sensor:Original Omron Brand with automatic Lubrication Pump
Dust Collector:2.2 Kw Dust Collector
Equipment & Features »
With Machine (Free) »
Roller Length:300 mm
Roll Diameter:300 mm
Roll Speed:Variable Speed With Inverter
Motor Power:2 HP
Dimension:1220*720*900 mm
Weight:150 kgs
Power :220 V, Single Phase, 50 Hz
Design:T-Slot Working Table
Working Table:T-Slot Aluminum Table + White Pvc
Control System:DSP Richauto A11E
Inverter:5.5 Kw Best brand Inverter
Spindle:4.5 KW (HQD) air cooled Spindle
Spindle Speed:18000 rpm
X, Y Axis:20mm Linear Guidway And Block 1.25m Helical Rack and Pinion
Z Axis:TBI Ball Screw, Connection As Coupling Type
X,Y,Z Axis Motor:Stepper Motor
X,Y,Z Axis Driving System:Leadshine Stepper Drive
Travelling Size:2500*1300*200 mm
Sensor:Omron, Japan
Manual Lubrication:Manual
Dust Collector:2.2 Kw Dust Collector
Voltage:AC 220v, 01 PH, 50hz
Design:T-Slot Working Table
Working Table:6 mm+8 mm Thickness Steel Structure
Control System:DSP Richauto A11E Extra Long Cable
Inverter:5.5x 2 Kw Folinn brand Inverter
Spindle:4.5x 2 KW air cooled Spindle (HQD)
Spindle Speed:18000 rpm
X, Y Axis:20mm Linear Taiwan Guidway And Block; 1.5m Helical Rack
X and Y Axis Driving System:Yako Stepper Motor
Z Axis Driving System :Yako Servo Motor; Ball Screw-Connection as Coupling Type
Traveling Size:2500*1700*200 mm
表高度:700 mm
Electric Components:Schneider
Sensor:Original Omron Brand with Manual Lubrication Pump
Dust Collector:2.2 Kw Dust Collector
Voltage:AC 220v, 01 PH, 50hz
Design:T-Slot Working Table
Working Table:6 mm+8 mm Thickness Steel Structure
Control System:DSP Richauto A11E
Inverter:7.5 Kw Foling brand Inverter
Spindle:6 KW (HQD) air cooled Spindle
Spindle Speed:24000 rpm
X, Y Axis:25mm Linear Hiwin brand Guidway And Block; 1.5m Helical Rack
Z Axis:Taiwan Made Ball Screw
X,Y,Z Axis motor and Driving System:Yako Servo Motor and Driver
Traveling Size:2500*1300*300 mm
Sensor:Original Omron Brand
Manual Lubrication:Manual Lubrication Pump
Dust Collector:2.2 Kw Dust Collector
Voltage:AC 220v, 01 PH, 50hz
Max. boring diameter:Ø35 (single) Ø13 (multi) mm
Max. boring depth:60 mm
Quantity of boring spindle:22*2+11*8 pcs
Diameter of collect:Ø10 mm
Max. Center distance of holes:2600*672 mm
Min. Center distance of holes:250*32 mm
Spindle rotation speed:2840 rpm
Motor power:20 HP
Dimension:4600*2500*1620 mm
No Digital display and Auto feeder
Design:T-Slot Working Table
Working Table:T-Slot Aluminum Table + White Pvc
Control System:DSP Richauto A11E
Inverter:5.5 Kw Best brand Inverter
Spindle:4.5 KW (HQD) air cooled Spindle
Spindle Speed:18000 rpm
X, Y Axis:20mm Linear Guidway And Block 1.25m Helical Rack and Pinion
Z Axis:TBI Ball Screw, Connection As Coupling Type
Z,Axis Driving System:Leadshine Servo Motor & Driver
X,Y Axis Motor:Stepper Motor
X,Y Axis Driving System:Leadshine Stepper Drive
Traveling Size:2500*1300*300 mm
Sensor:Omron, Japan
Manual Lubrication:Manual
Dust Collector:2.2 Kw Dust Collector
Voltage:AC 220v, 01 PH, 50hz
Workbench Size:1000 * 210 mm / 40 x 12 "
Drum Sander Size:100*200 mm
Sanding Belt Speed:576 m/Min
Sanding Belt Size:2262 * 300毫米
Main Spindle Speed:1700 rpm
Motor Power:2 HP
Weight:120 Kgs
Power :220 V, Single Phase, 50 Hz
Working Table Size:1160*700 mm
Max. Milling Width:120 mm
Arbor Diameter:Ø 30 mm
Min. Profiling Radius:45 mm
Spindle Speed:10000/8000/6000 rpm
Motor Power:5.5 HP
Voltage:380 v 50 hz
Dimension:1160*700*945 mm
Weight:345 kgs
Power:220v,50Hz
