Equipment & Features »
- Standard Fence
- Emergency Switch
- Designed For Heavy Duty
- Also Shoe Pad Operation
- Standard Switch for over Load Safety
With Machine (Free) »
- Installation & Training
- 1 year servicing
- Tool Kit
- Collet & Cutters
Two Head Multi Boring MB2HR
Specification:
Max Boring Dia. :⌀35 (Single) ⌀13 (Multi)
Max Boring Dia.60 mm
数量:21 x2 pcs
Diameter of drilling collet:⌀ 10 mm
主轴Rotation:2840 rpm
Motor Power:3 KW
Air Pressure:05-06 MPA
Dimension:1350 x 1300 x 1600
Description
Related products
Close
Combination Machine WTS 350
Specification:
Table Size:60″x14″
Max. Planing Depth:3mm
Entrance Of Thicknesser:6-120mm
Min.Length Of Planing:150mm
Auto Feeding Speed:10m/Min
主轴Speed:3560rpm
Max. Sawing Thickness:75mm
Motor Power:2.2kw/3 HP
Dimension:1600x1660x880mm
Weight:235kgs
Power :220v, Single Phase, 50 Hz
Close
High Speed Router CR 3246
Specification:
Max. Working Thickness:150 mm/6″
主轴Stroke:65 mm/2.5″
Worktable Size:805 x 600 mm/32″x26″
Worktable Stroke:180 mm/7″
Arbor Diameter:12.7 mm
主轴Speed:18000 rpm
Throat:30″
Motor Power:4 HP
Close

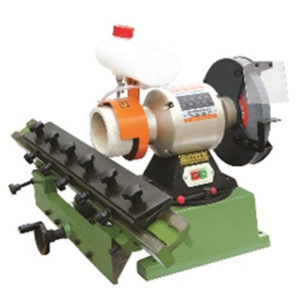

Small Knife Grinder MF 207
Specification:
Max. Grinding Size :650x35x5 mm
Main Motor Power:370 W
Power:220v,50 Hz
Close
Small Knife Grinder MF 206
Specification:
Max. Grinding Size :650x35x5 mm
Main Motor Power:500W
Power:220v,50 Hz
Close
Four Head Boring Machine MB4HD
Specification:
Max. drilling diameter:Dia Dia-35mm(单一枯燥)13mm ( multi boring)
Max. drilling depth:60mm
Total Spindle Qty:11 x 4 + 21 x 2 pcs
Collect Dia:⌀ 10 mm
Max. Center Distance Between holes:2450 x 672 mm
Min. Center Distance Between holes:130 x 32 mm
主轴Speed:2840 rpm
Motor Power:9 kw
The product is already in the wishlist!
Browse Wishlist
Close
Circular Saw Grinder MF-126
Specification:
Sharpening Saw Blade:Φ90-630 mm
Sand Wheel Size:Φ100x10x20x5 mm
主轴Speed:2850 rpm
Motor Power:370w/0.5 HP
Dimension:660x460x370 mm
Power:220v,single Phase,50 Hz
Close
Auto Hole Drilling and Boring Machine WTS Drill Elite 303
Specification:
Head:1 horizontal & and 2 vertical Heads
Max. drilling diameter:Dia Dia-35mm(单一枯燥)13mm ( multi boring)
Max. drilling depth:50mm
Total drill spindle quantity:21×1+22x2pcs = 65 pcs
Max. center distance between holes:1800x672mm
Min. center distance between holes:130x32mm
主轴rotation speed:2840RPM
Center distance of drill spindle:32mm
Horizontal rows motor power:1.5KW
Air pressure:0.5-0.6Mpa
Dimension: 2800x2500x1620mm
Close
Combination Machine WTS 300
Specification:
Table Size:48″x12″
Max. Planing Depth:3mm
Entrance of Thicknesser:6-120mm
Min.Length of Planing:150mm
Auto Feeding Speed:10 m/Min
主轴Speed:3560rpm
Max. Sawing Thickness:75mm
Motor Power:2.2kw/3 HP
Dimension:1600x1660x880mm
Weight:200kgs
Power :220v, Single Phase, 50 Hz
