Salient Features »

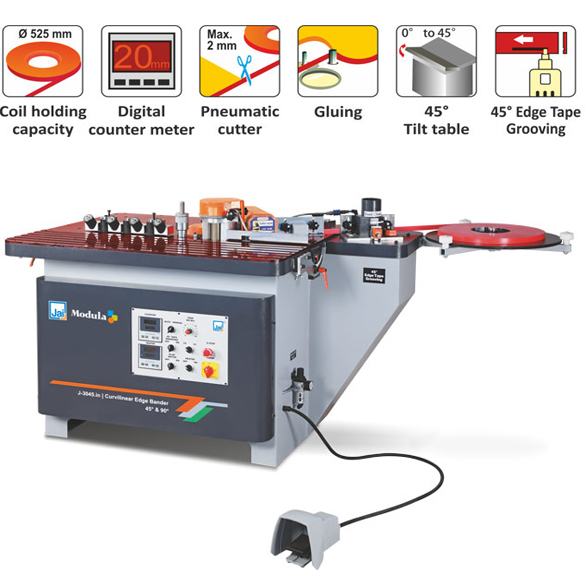

- This is an extremely flexible machine for application of PVC/ABS or Veneer on straight or shaped or 45° panels. The Edge Banding is a semi-automatic machine for curvilinear work piece, wherein the predefined length of PVC/ABS to be glued to the laminate can be set for repetitive work piece and the digital temp.
- 45° Edge Banding panels are widely used for mfg. handleless drawer, door frame, worktable etc.
- Pneumatic cutting device for pre-defined length, with foot switch.
- lectronic digital millimeter counter to adjust the length
- Glue roller apply glue on board & tape for perfect bonding
- German gearbox for smooth & power drive with long life synthetics lubrication.
- Easy regulation of variable speed 4 to 16 m/min
- Revolving edge coil holder plate 525 mm. Ø
- Automatic lowering of the glue temperature after a temporary non-use of the machine
- Hard chrome steel rollers to support & guide the work piece
- 工作ing table with specially designed hylum surface for heat insulation & frictionless movement of work piece
- Tilting working table from 0° to 45° with height adjustment up to 3 mm
- Electronic digital temp. controller with safety circuit, which allows to start the drive motor only when the hot glue has reached the set temperature
With Machine (Free) »
- Installation & Training.
- 1 year servicing.
- Toolkit & Manual.
